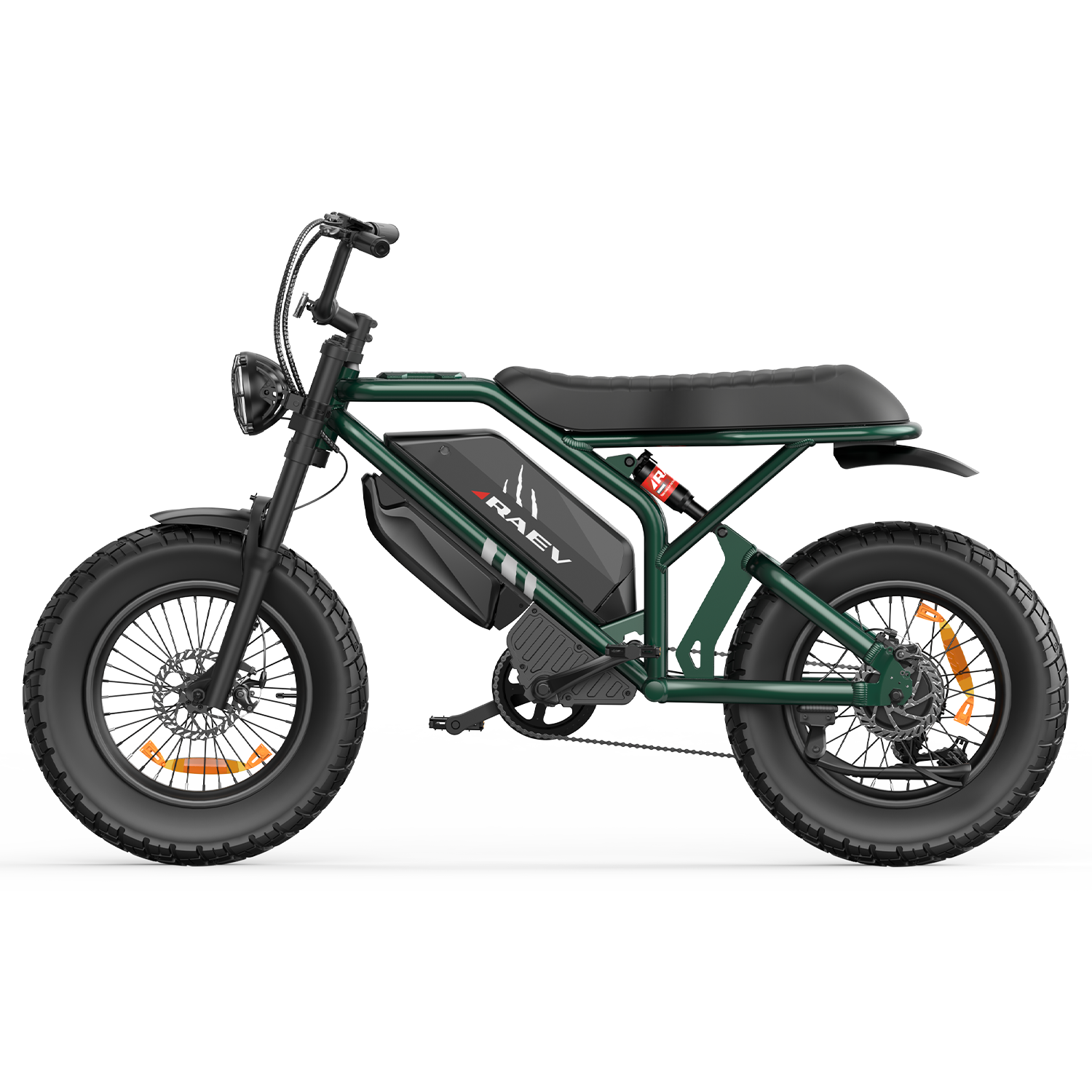

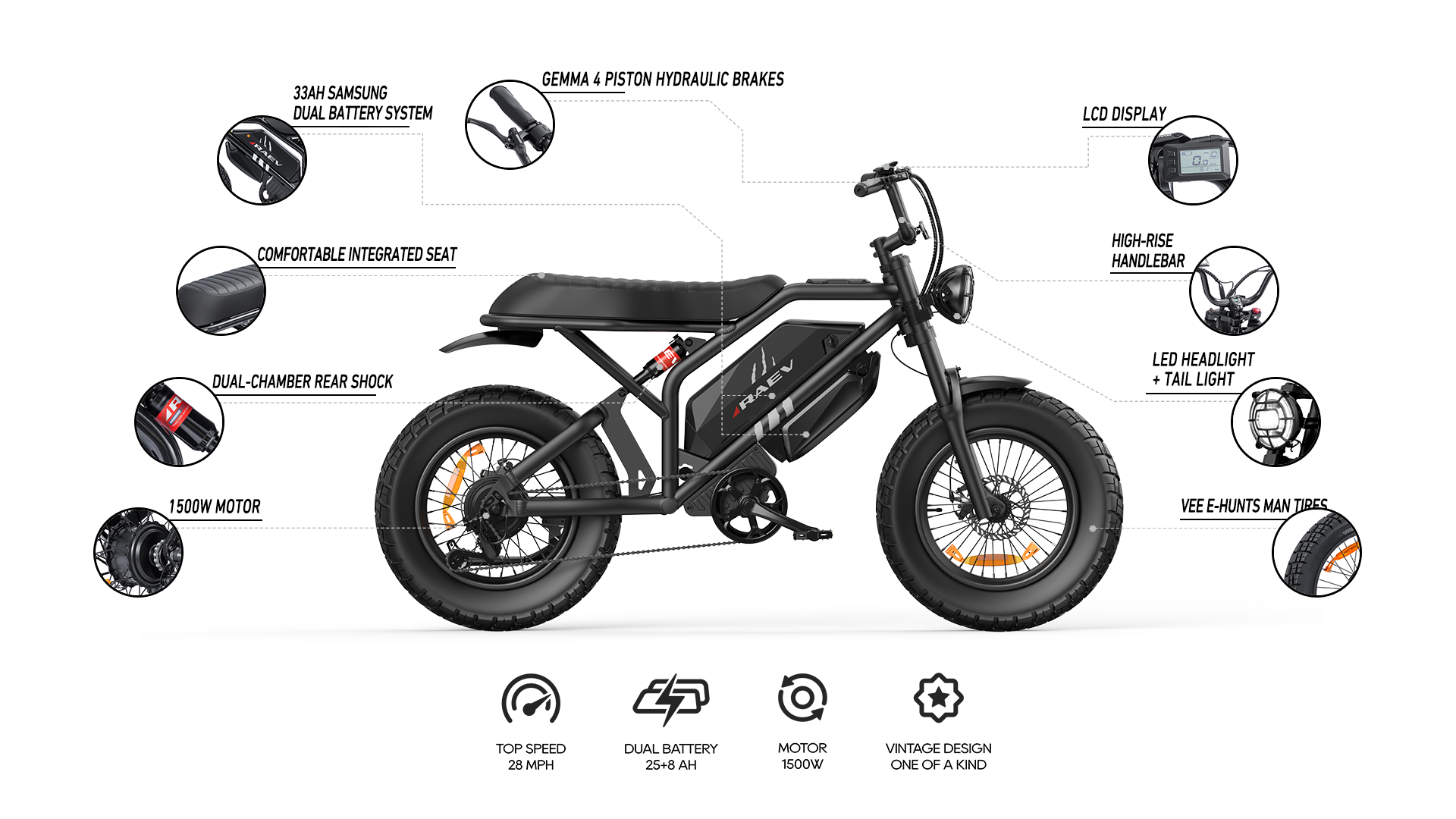

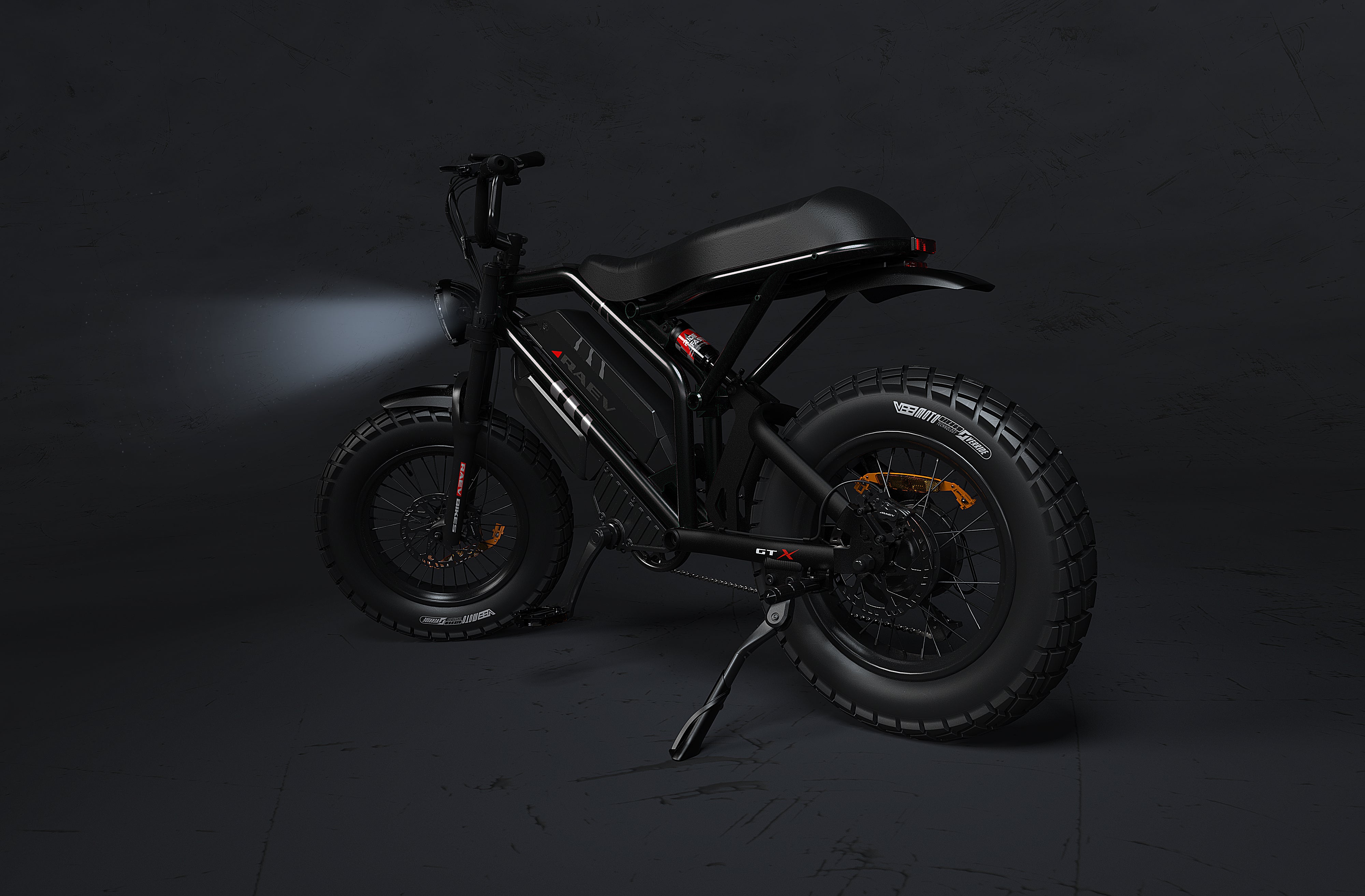

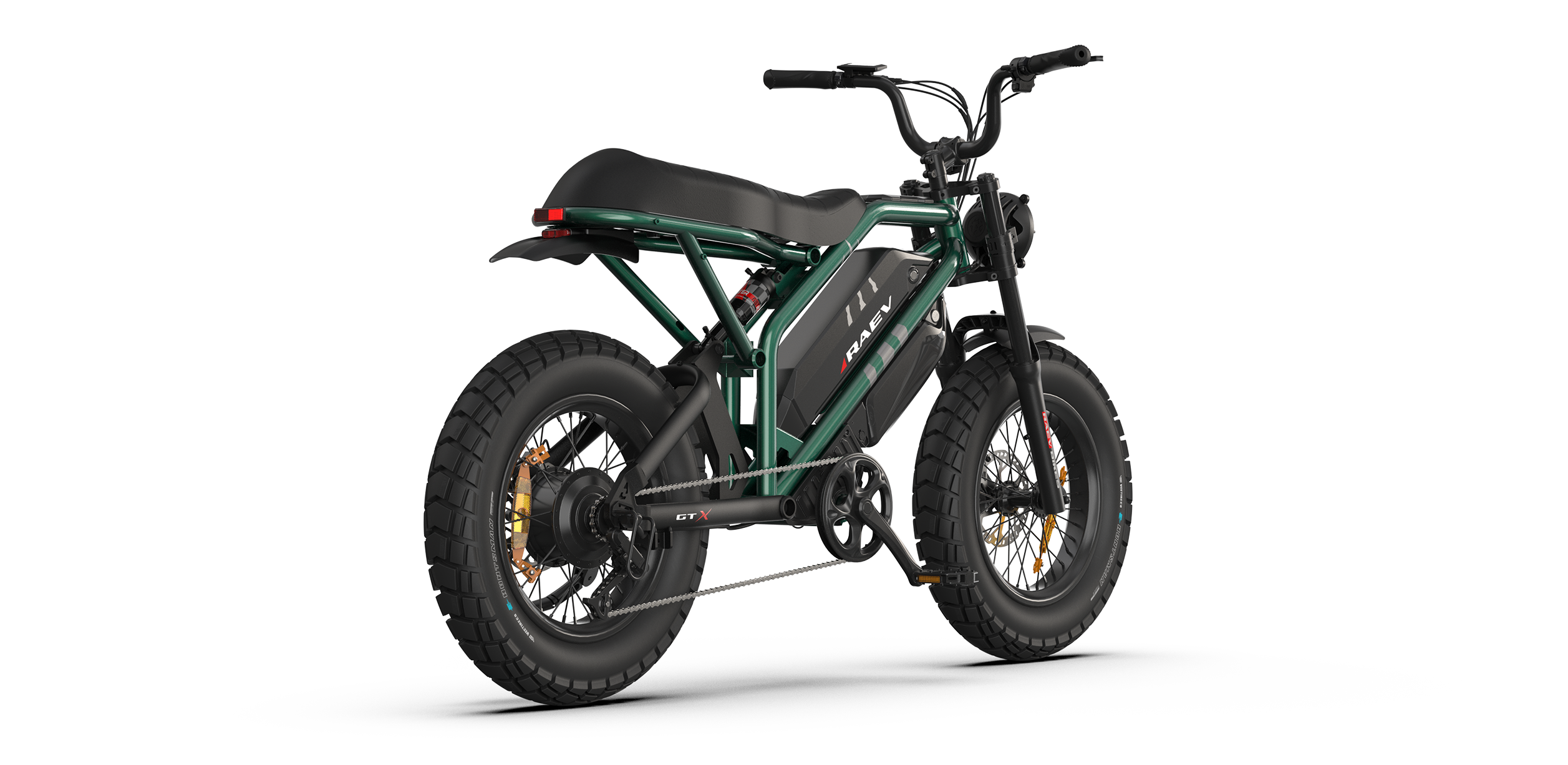

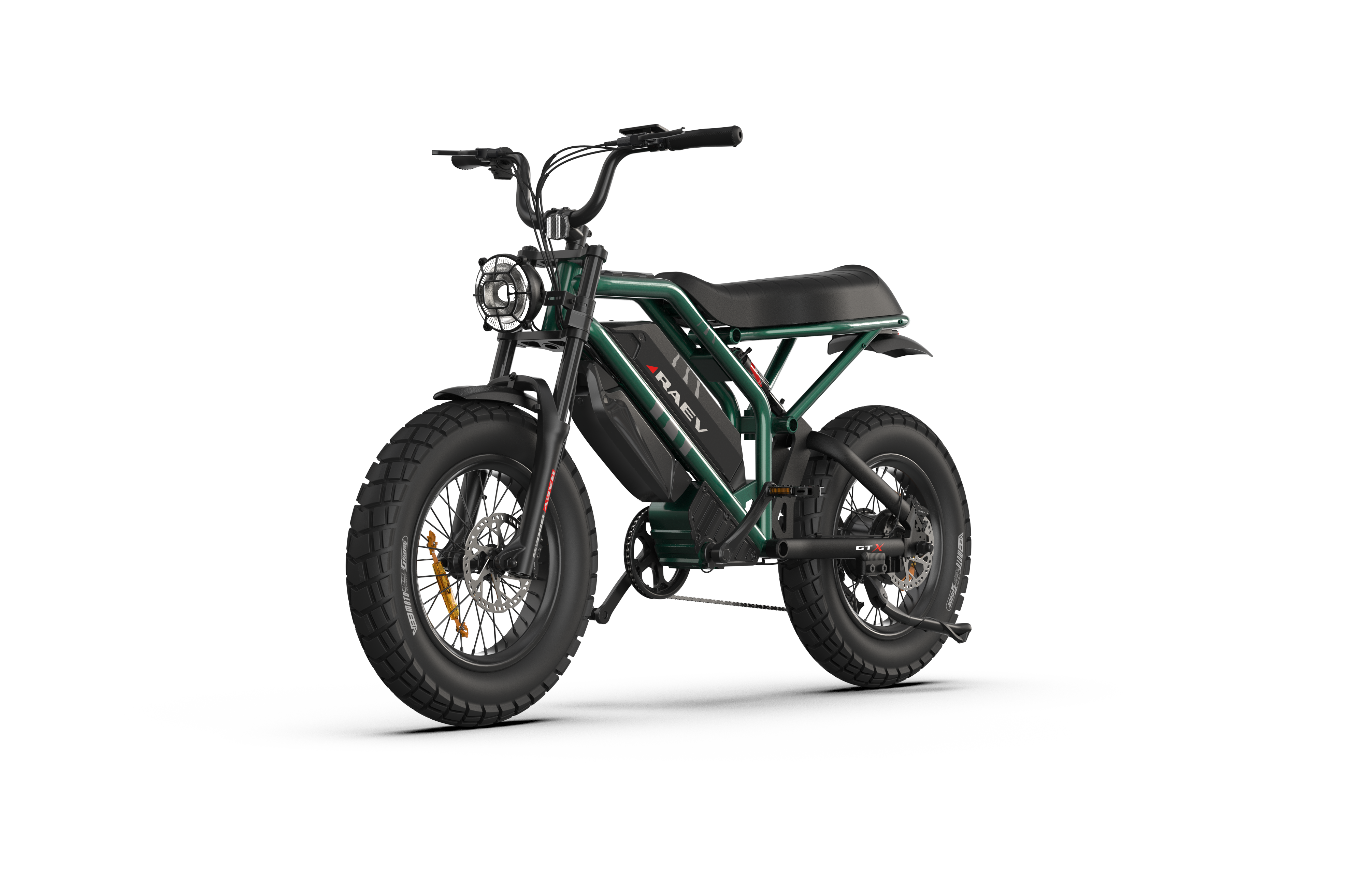

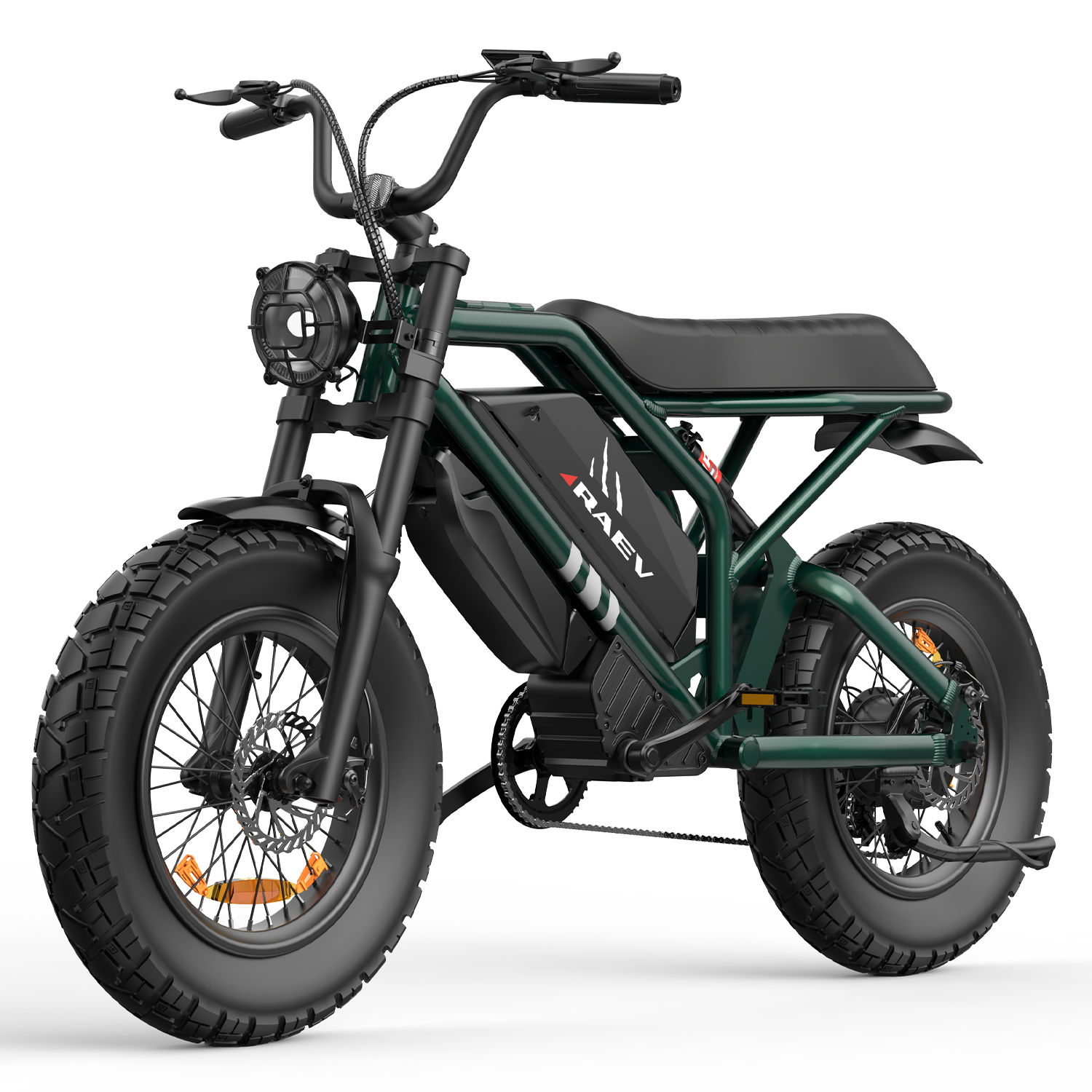

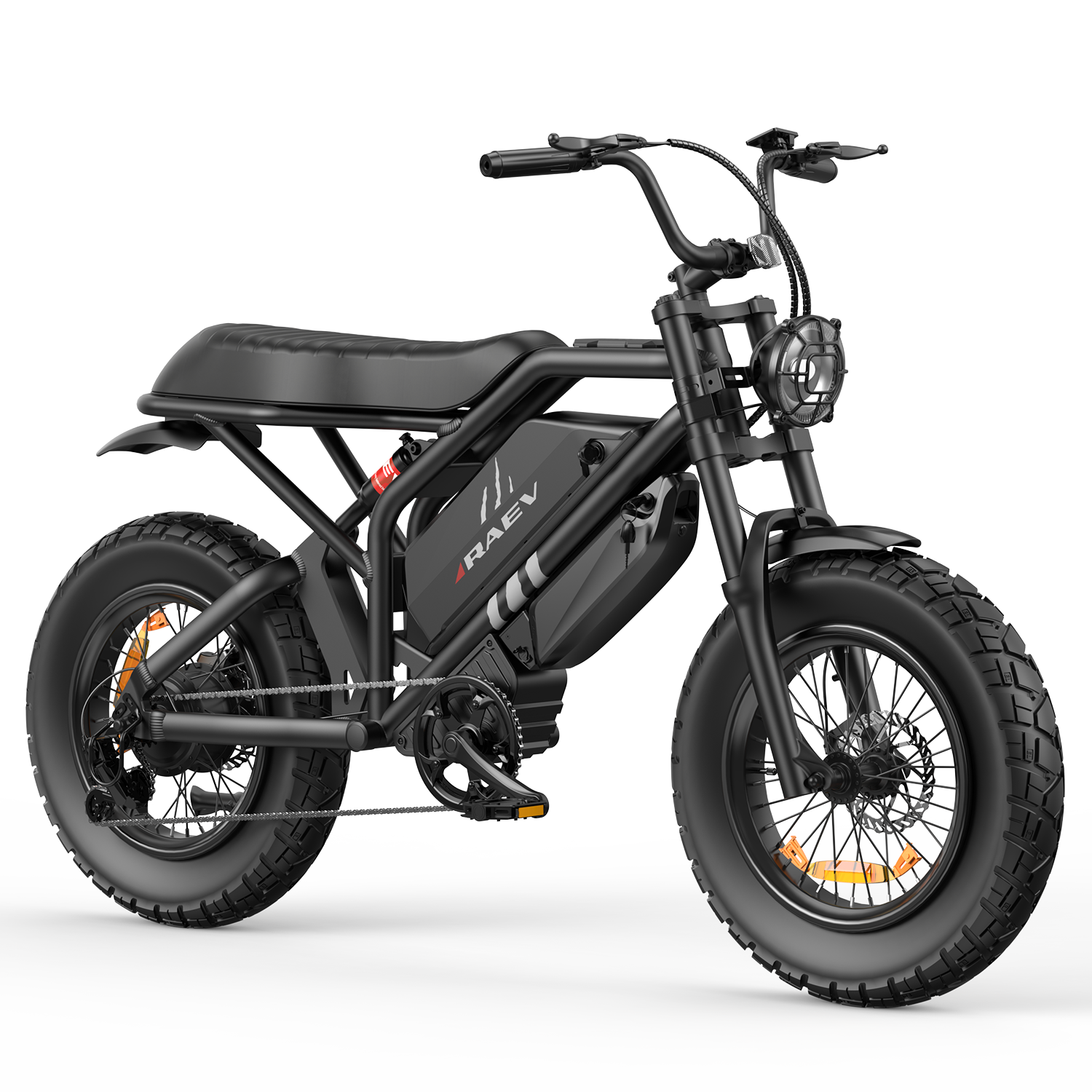

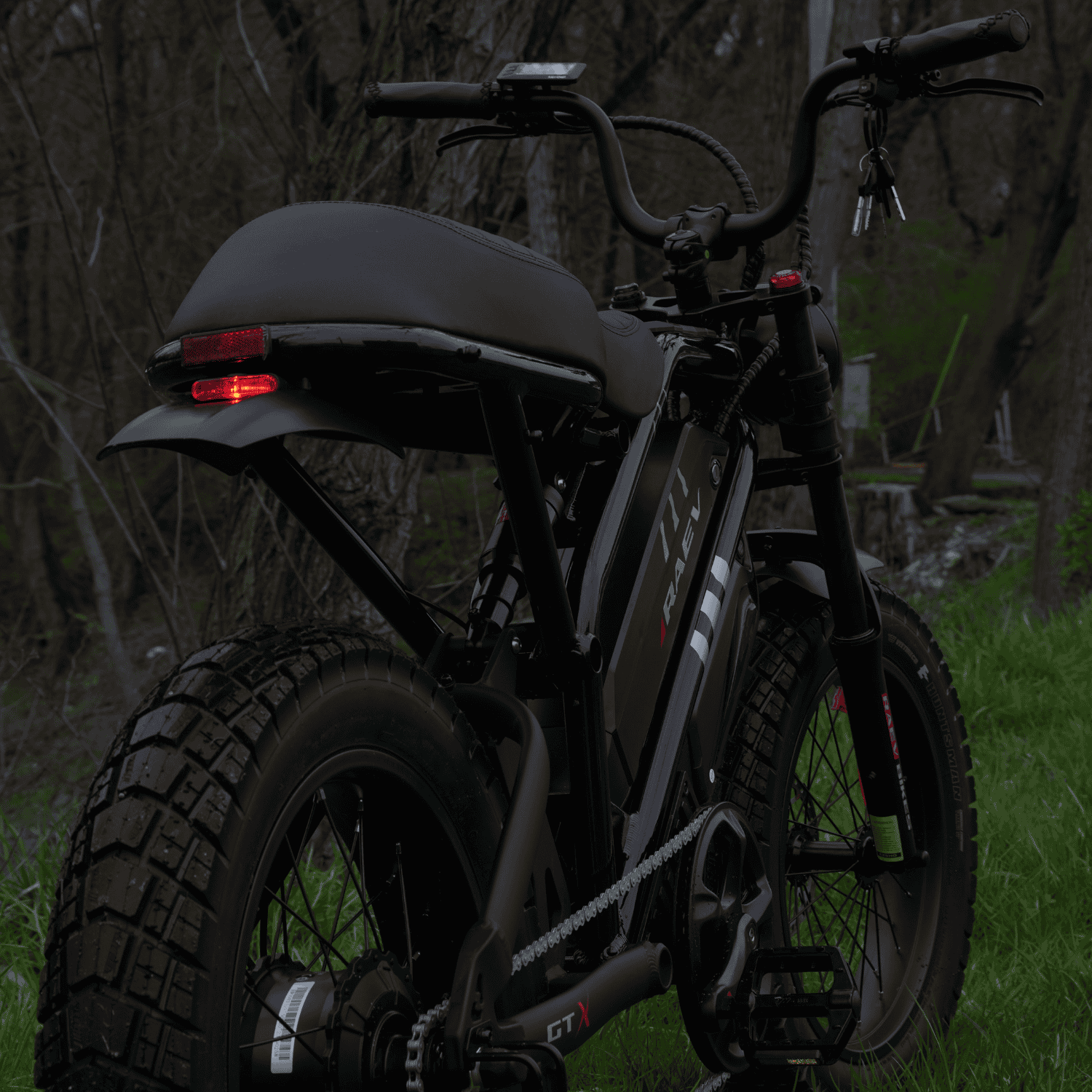

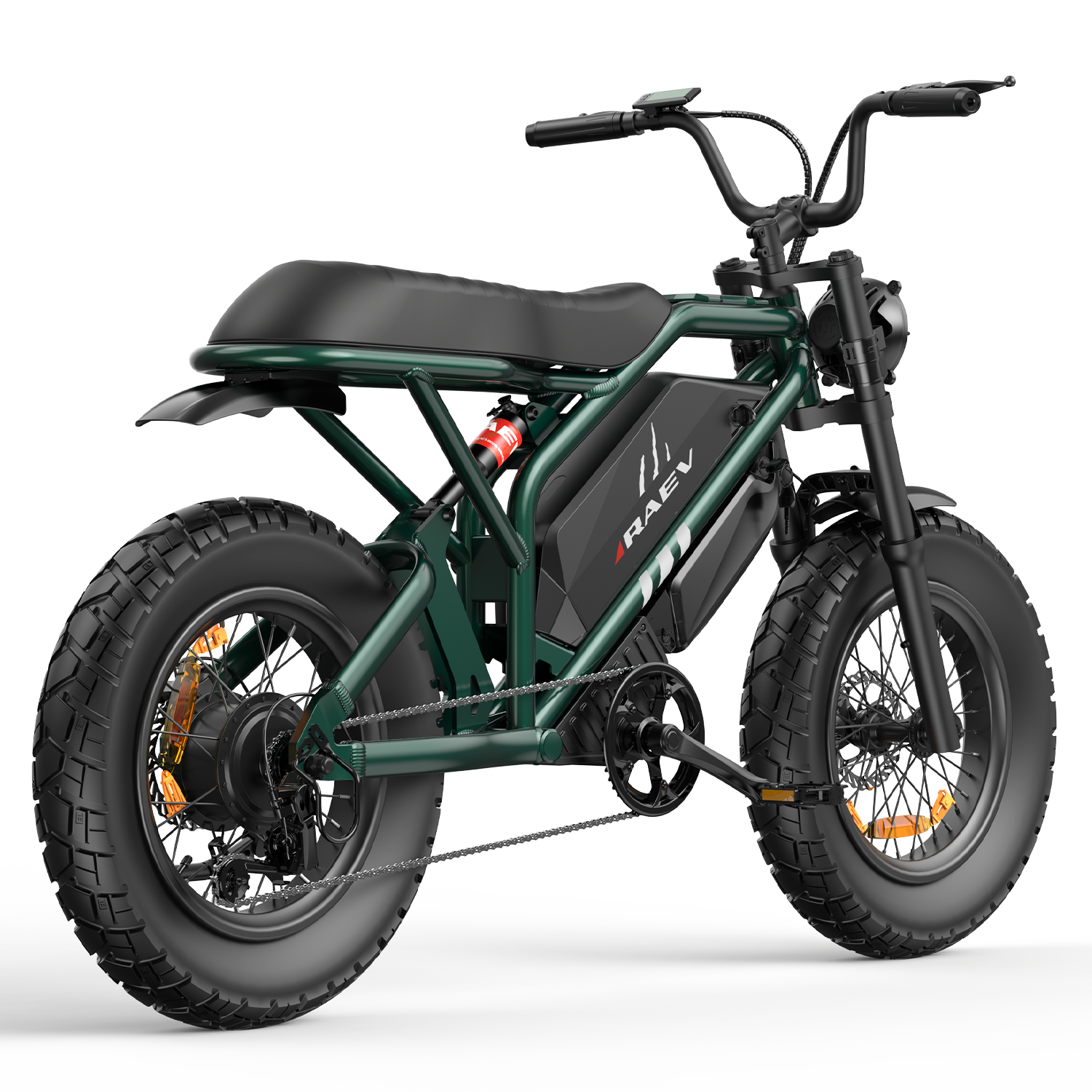

Bullet GTX
Xtreme Power Unleashed
2-Chamber
Air Shock
350Lbs
Weight Limit
4-Piston
Hydraulic Brake
52V28Ah
Dual Battery
XTREME POWER UNLEASHED
Superior Comfort & Performance in All Conditions
PUSHING THE BOUNDARY
The GTX takes the classic GT design to new heights, delivering an even more electrifying experience. Retaining the motorcycle spirit, our new model boasts enhanced power, pushing boundaries with a stellar performance. Get ready to ignite your ride and embrace the exhilaration of the GTX.

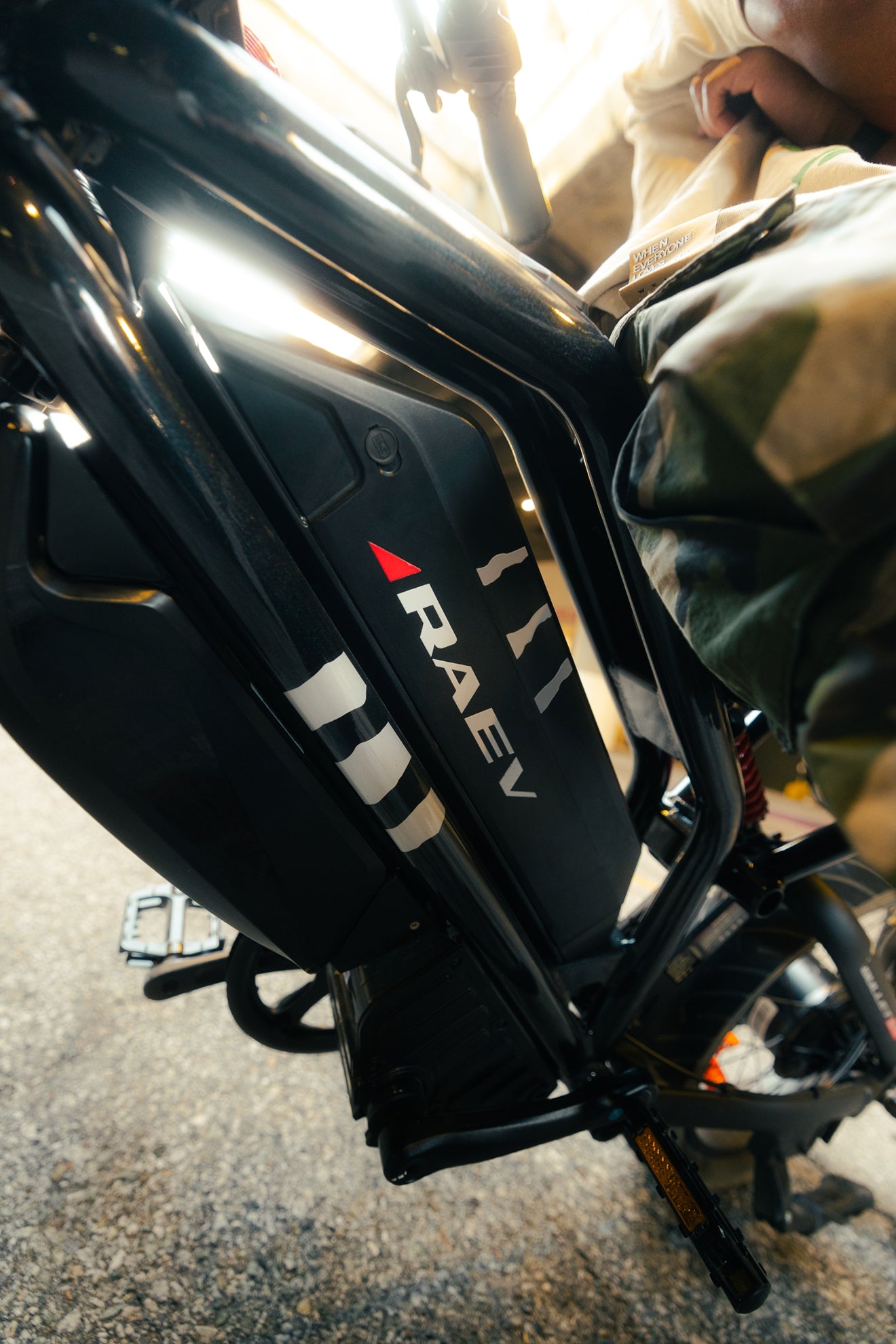

GO THE DISTANCE
Equipped with Samsung 21700 cells, the GTX harnesses the power of dual battery technology. Experience the freedom to explore as you effortlessly cover impressive distances of up to 40 miles using throttle only at max settings. With unwavering power and reliability, the GTX allows you to embark on limitless adventures while ensuring a seamless ride.

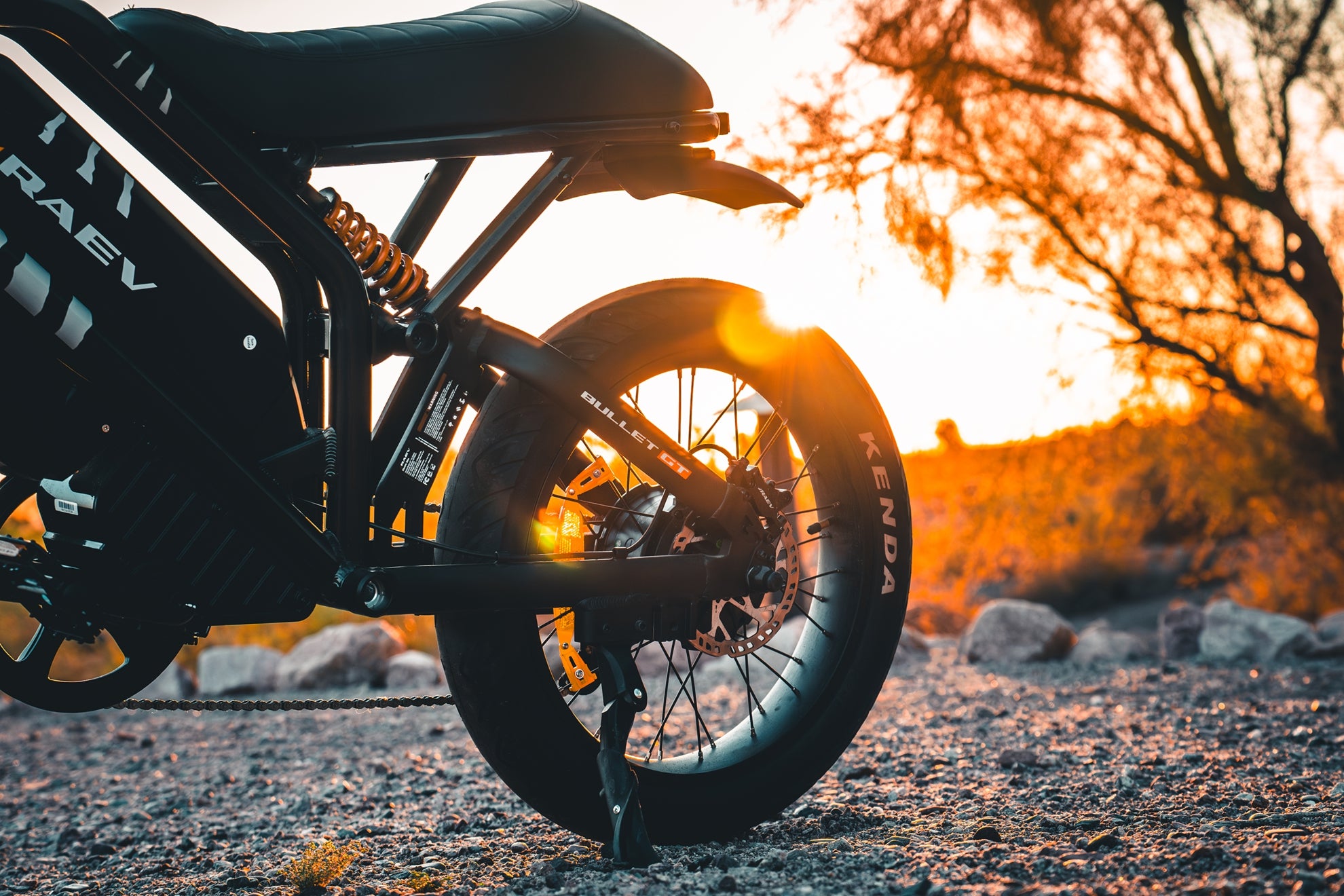

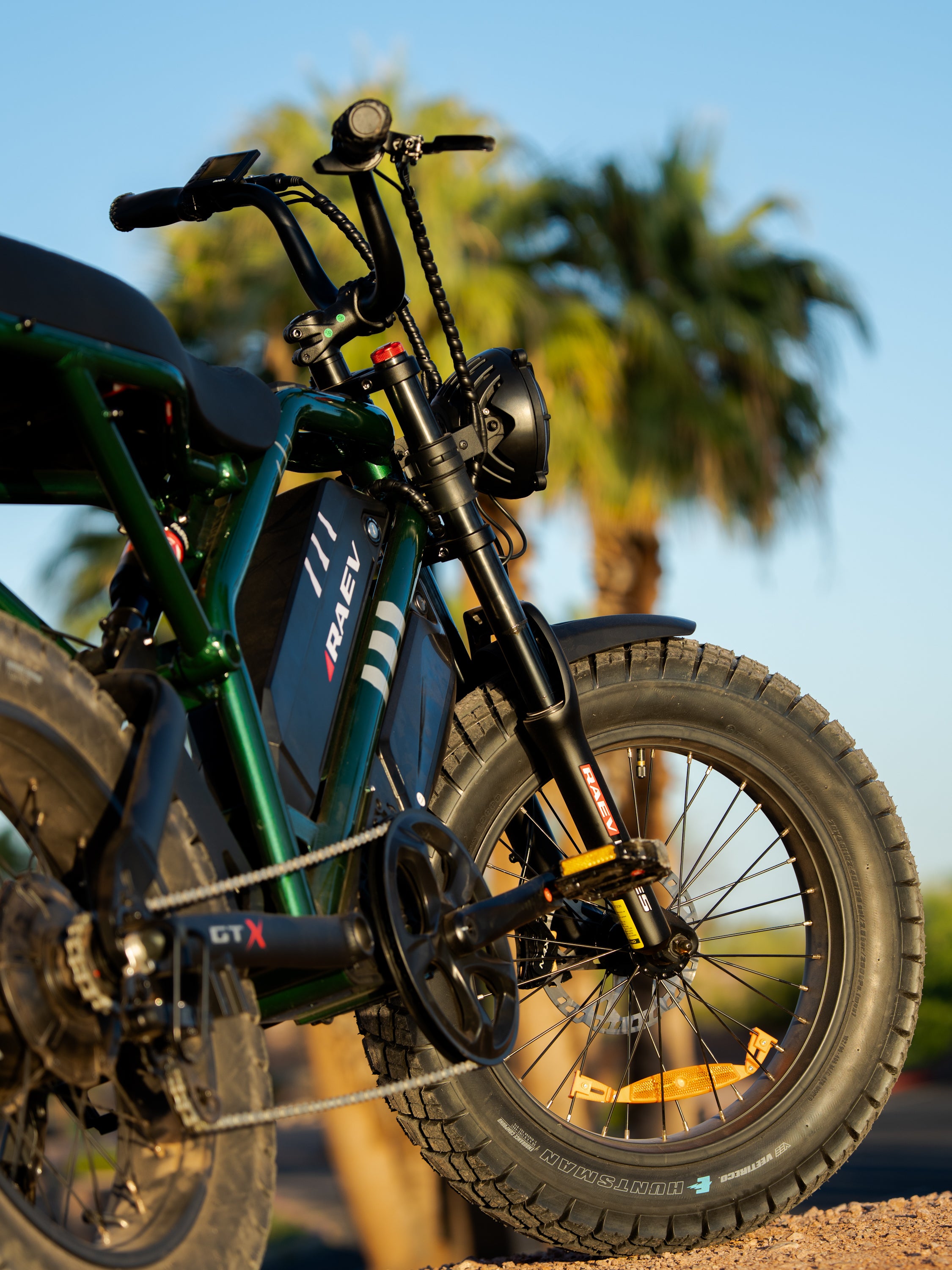

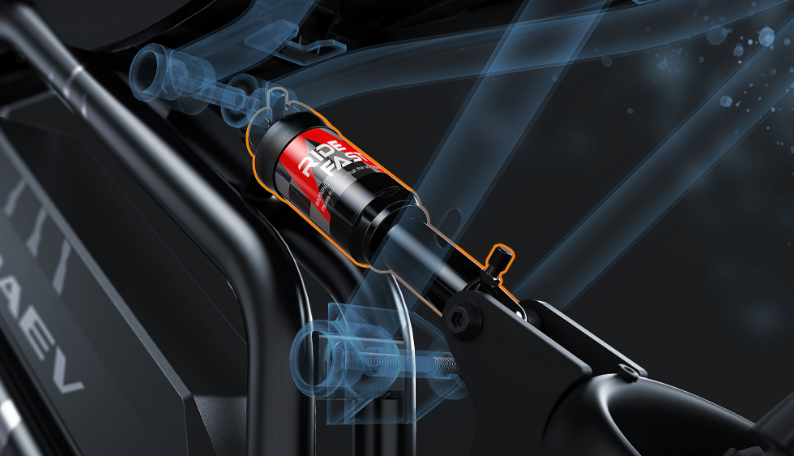

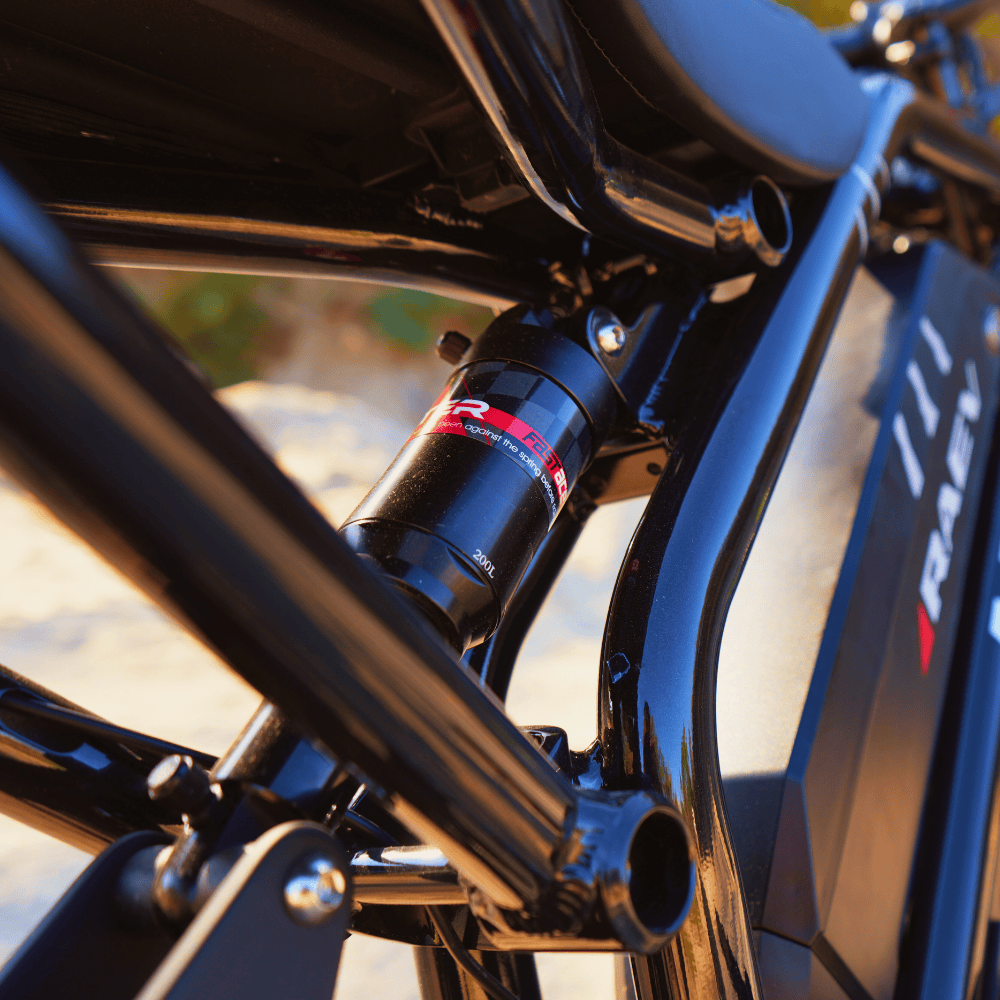

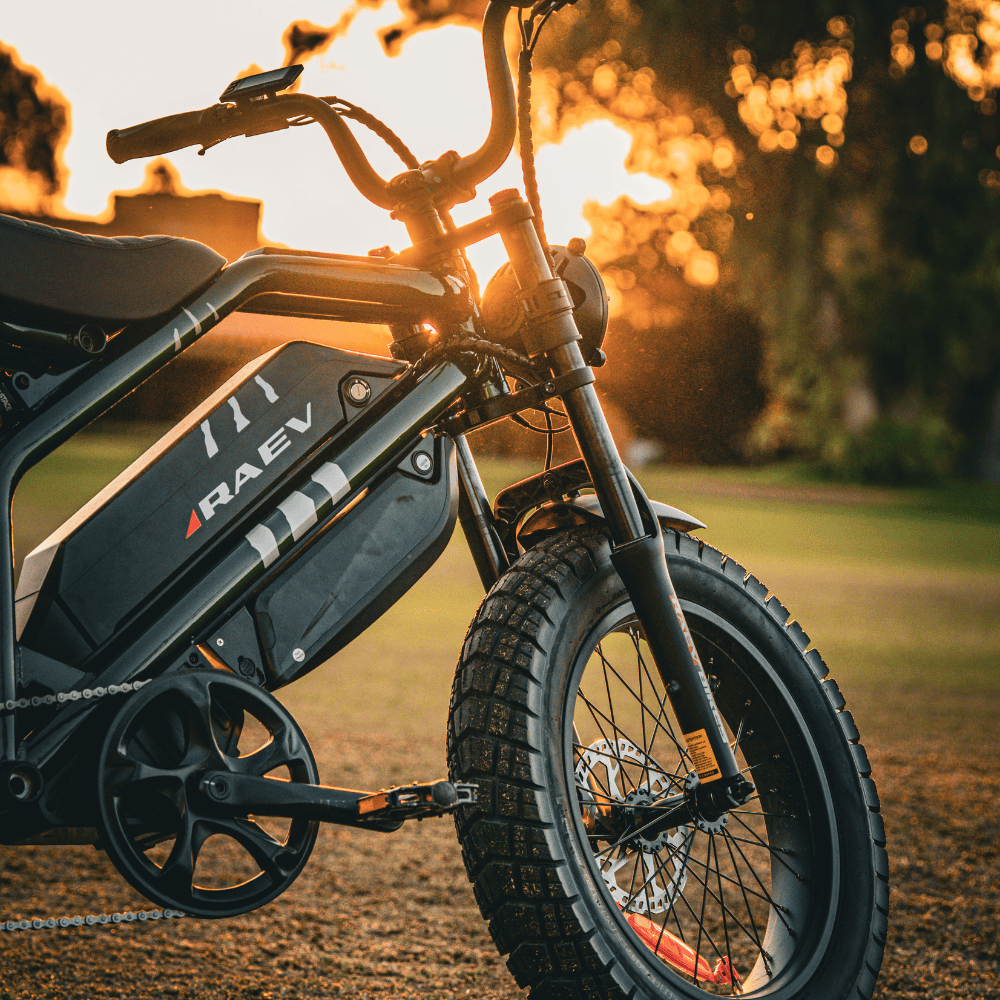

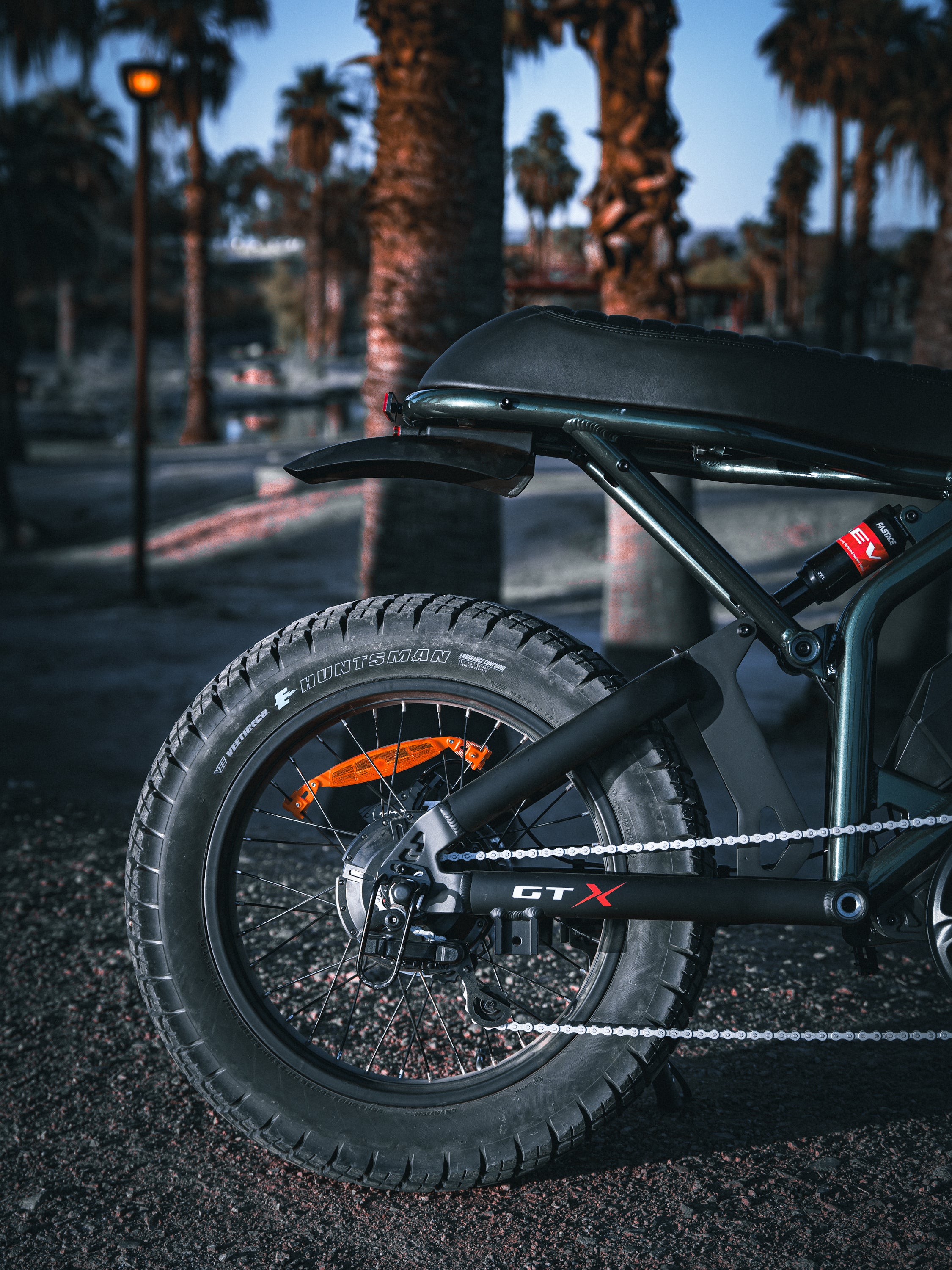

FLOAT THROUGH BUMPS
The GTX has a hydraulic suspension in the front and air suspension in the back. Whether you're cruising through city streets or trackling rugged trails, every bump and terrain is soaked up, the GTX provides a truly enjoyable ride like no other.

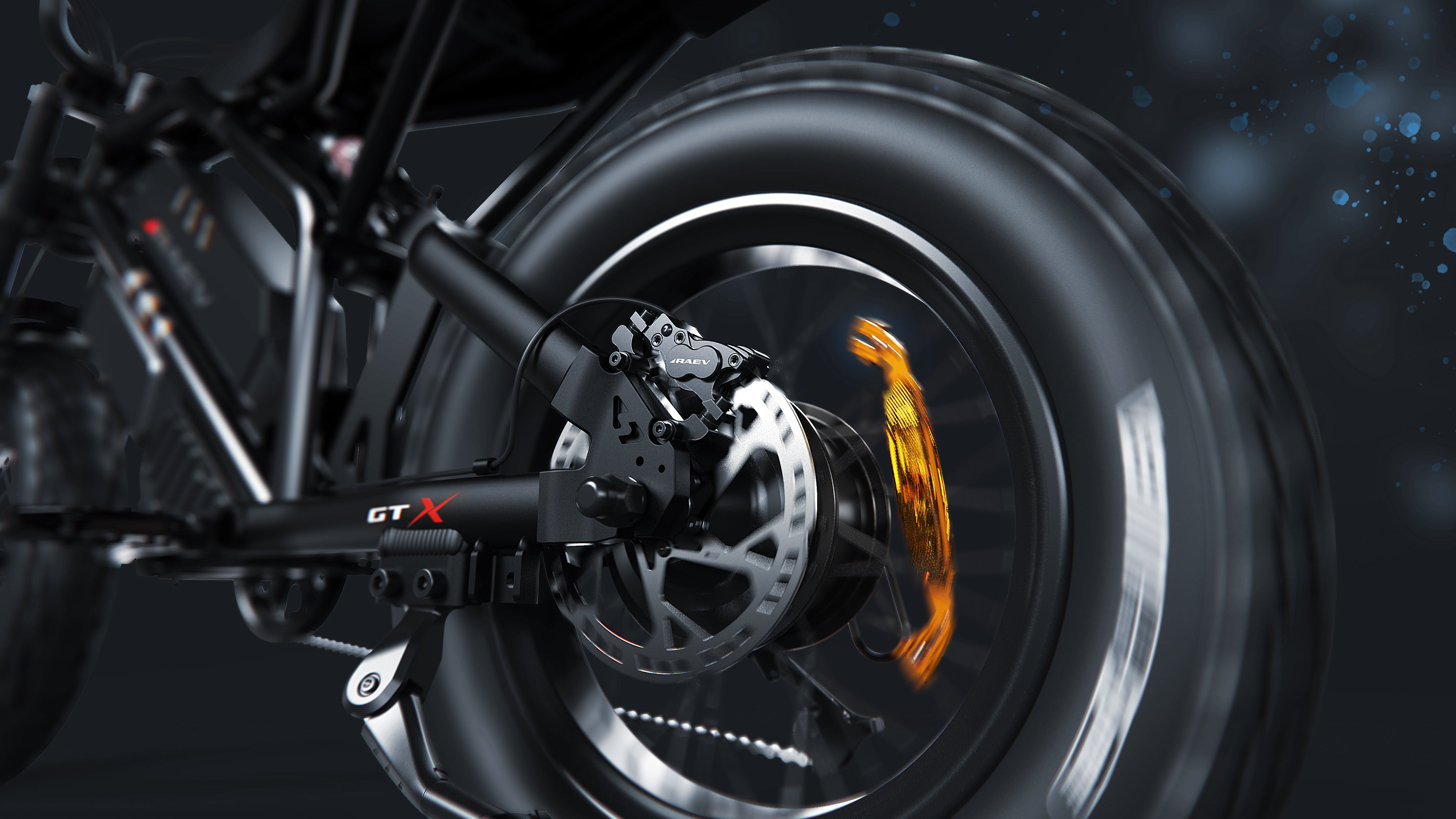

INSTANT STOPPING POWER
Equipped with advanced 4-piston hydraulic disc brakes. These high-performance brakes provide exceptional stopping power, ensuring effective braking even at faster speeds and on various terrains. Enjoy the peace of mind knowing that you can confidently control your ride and stop with precision, no matter the conditions

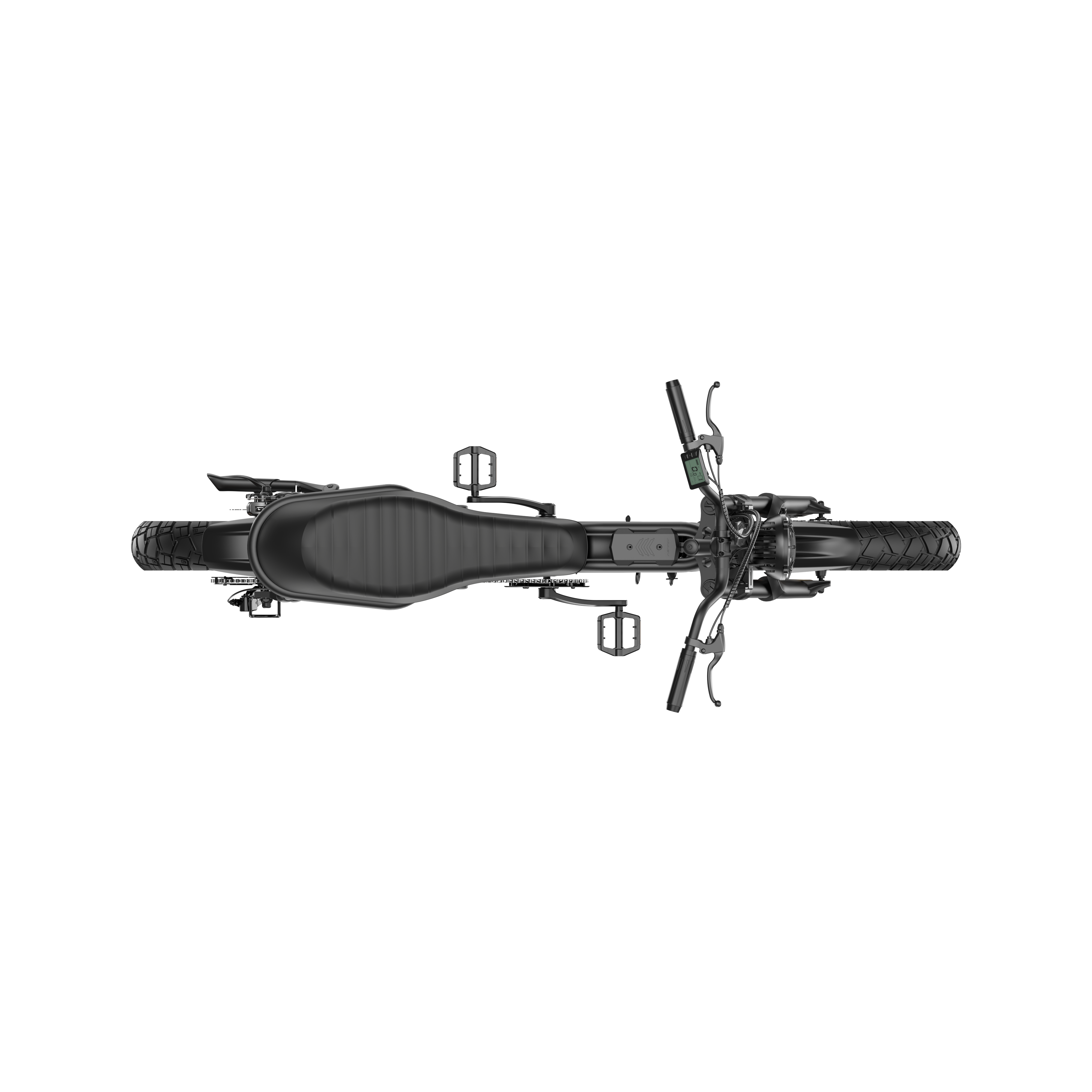

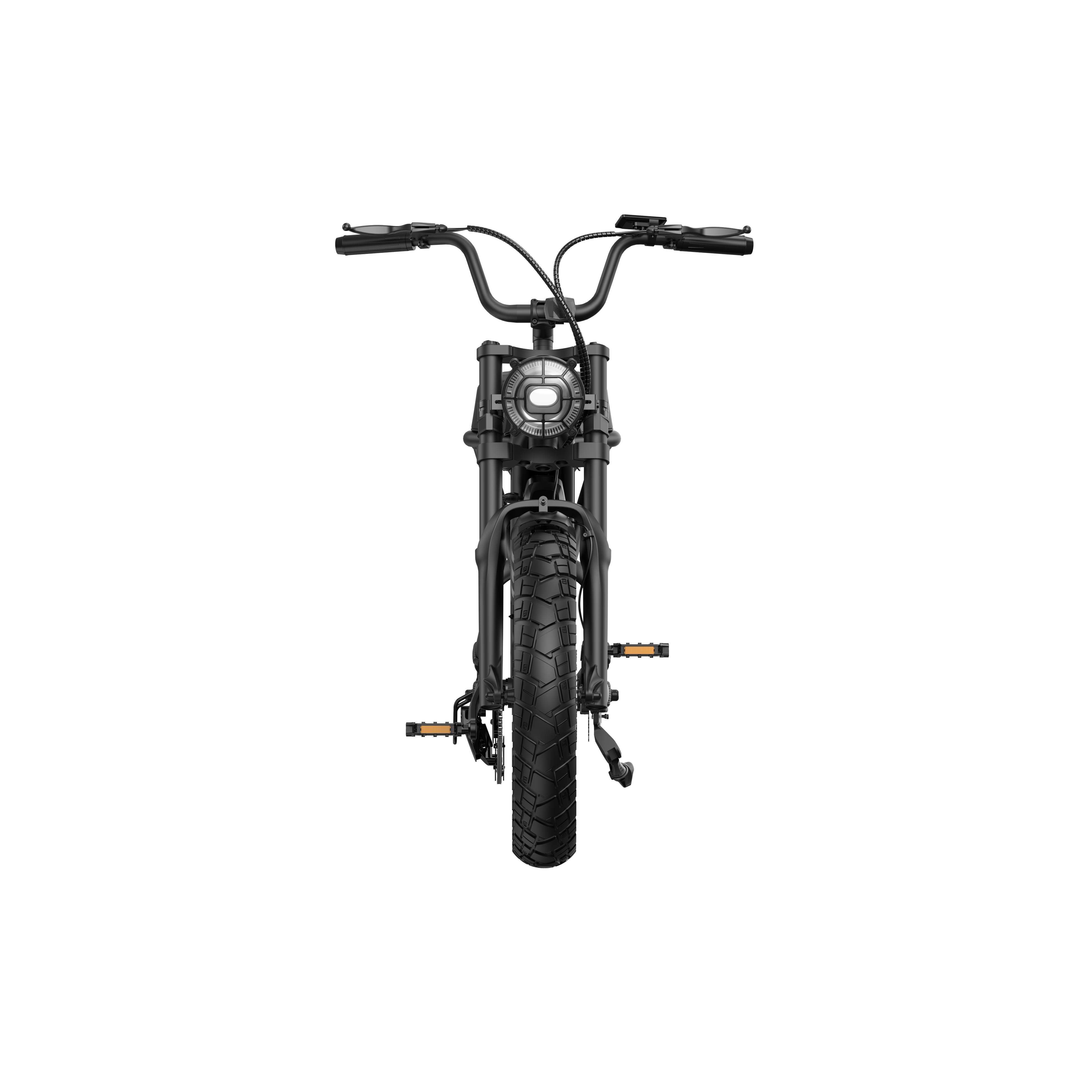

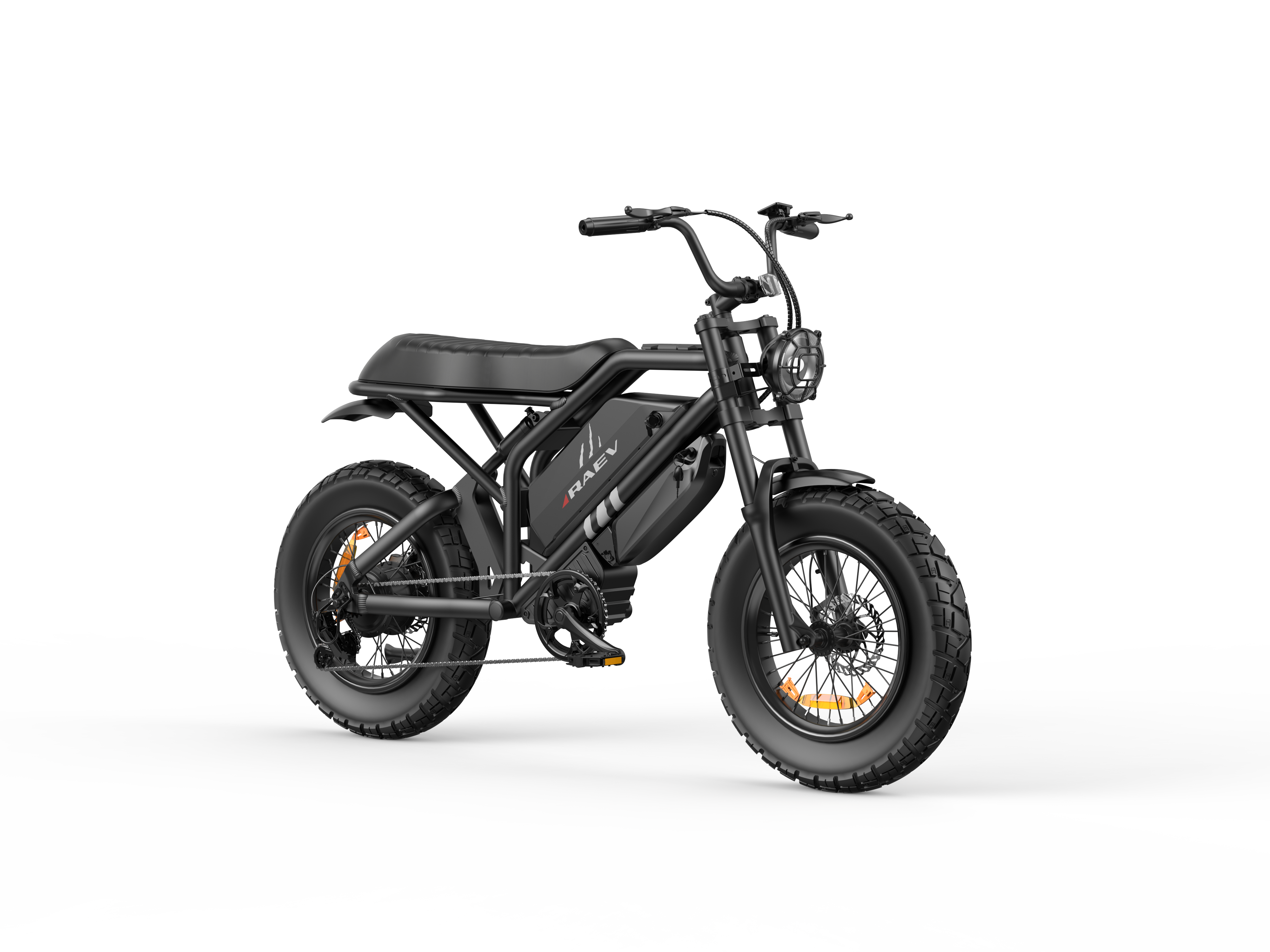

VISUALIZE IN 360° VIEW

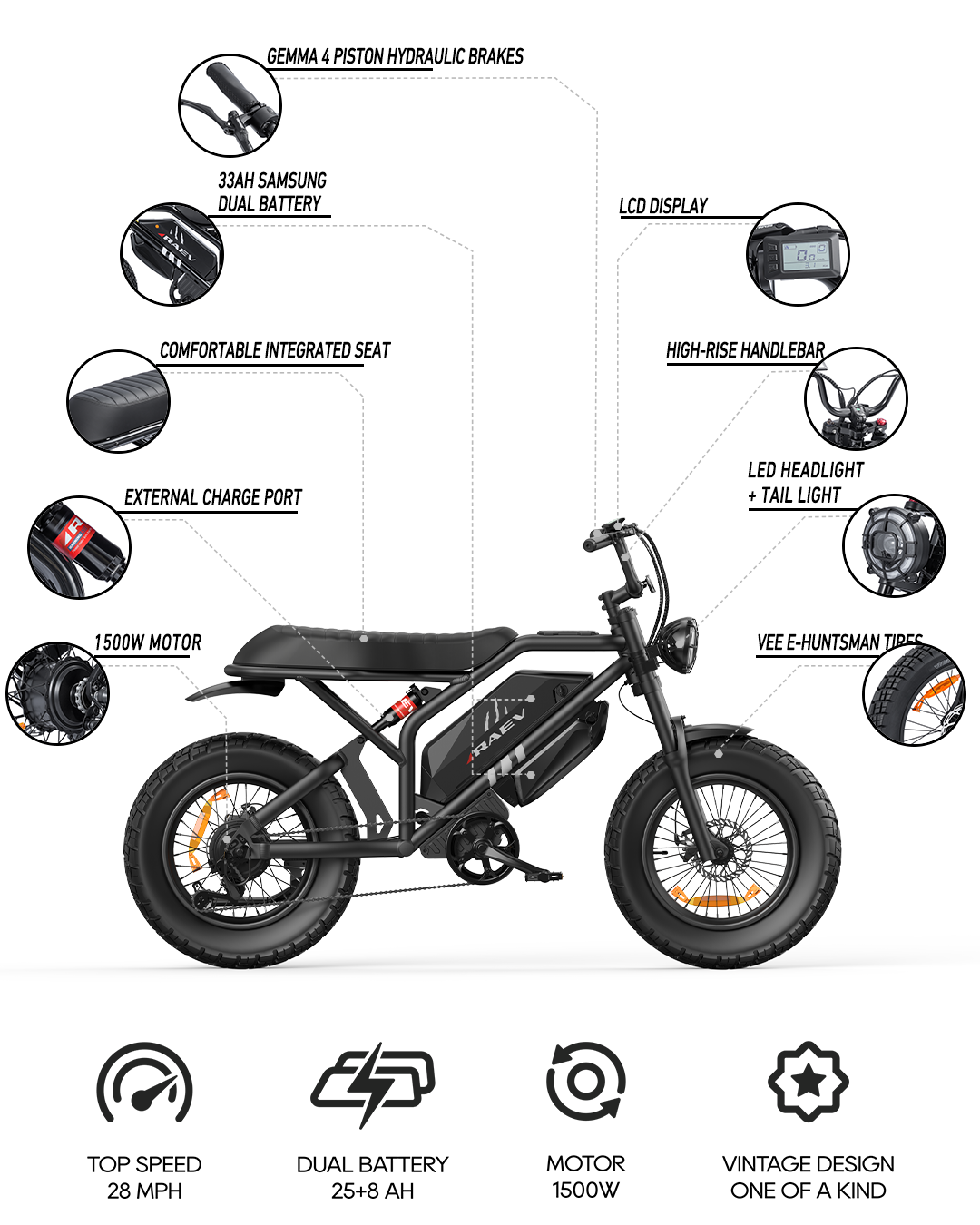

PERFORMANCE
Top Speed:
Classes 1/2 20MPH, Class 3: 28MPH, Off-Road: 35MPH
View Speed and Motor Chart
Range:
50+ Miles in Class2 Throttle-Only; 100+ Miles in Class1 PAS
Motor:
52V Hub Motor Peak 1500W
Battery:
52V20Ah Battery + 52V8Ah Battery (Samsung 21700 Cells)
Brakes:
4-Piston RAEV Hydraulic Disc Brakes w/ Electric Cut-Off Sensor

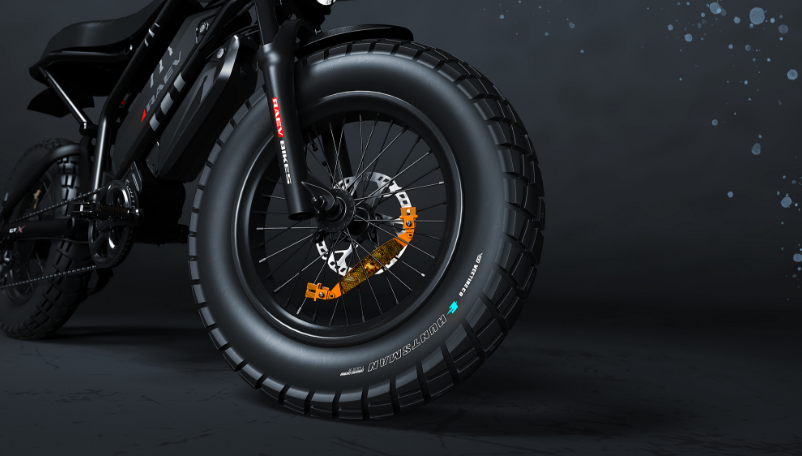

Tires:
Vee E-Huntsman 20" * 4.0" Dual-Sport Fat Tire
Throttle:
Thumb Twist Throttle
Max Payload:
330lbs
Front Suspension:
Hydraulic Suspension, 60mm Travel w/ Lockout & Adjustment
Rear Suspension:
Fastace Dual Chamber Air Shock
ELECTRONICS
Charger:
52V3A Fast Charger (Included)
Charging Time:
20Ah Battery: 7 Hours, 8Ah Battery: 2.5 Hours
Display:
Easy Read 2.2” LCD Display
Controller:
52V 30A 12 Enhanced MOSFET

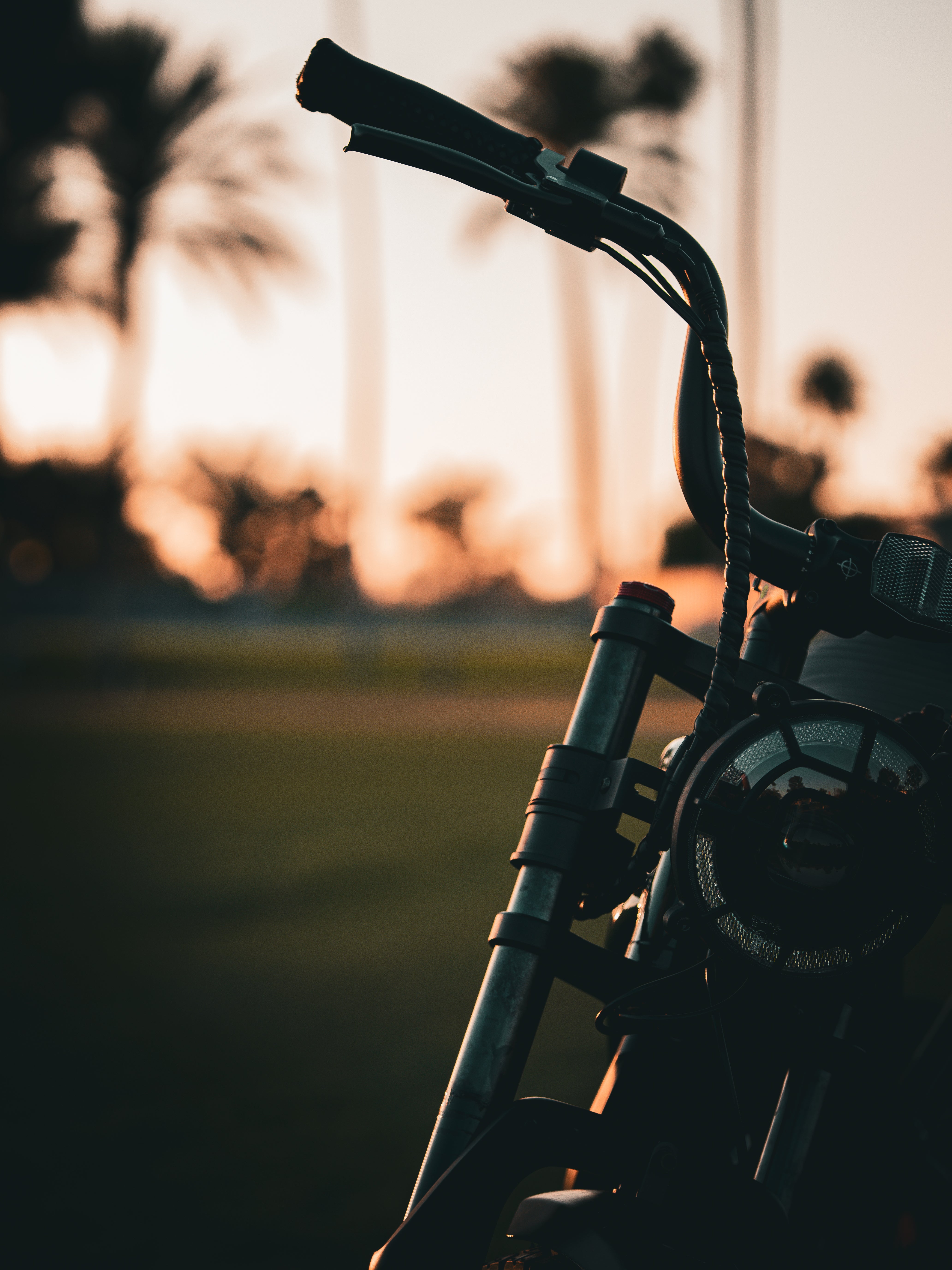

Front Light:
Moto Style Round Headlight, 120 LUX
Rear Light:
Integrated Taillight w/ Brake Light
Sensors:
Speed Sensor
Horn:
Yes
COMPONENTS
Brake Pads:
Ceramic Brake Pads
Brake Rotors:
180mm Stainless
Frame:
6061 Aluminum Alloy
Pedal:
9/16”Alloy, Composite Platform Pedals w/ Reflectors
Crankset:
160mm Crank Length, 52T Chainring
Gears:
Single Speed
Chain:
132 Links
Rim:
Double Wall Aluminum 36H Front & Rear
Spokes:
Black Stainless 13-Gauge Front/ 12-Gauge Rear
Stem:
Aluminum D31.8 * H42mm
Handlebars:
Aluminum 680mm Wide
Grips:
Durable Ergonomic Grips
Hubs:
36H Disc Thru-axle Front, Nutted Rear
GEOMETRY
Suitable Height:
Up to 6'4"
Seat Height:
32.7”
Bike Height:
42.9”
Wheelbase:
46.7”
Total Length:
70”
Handlebar Width:
27.2”
Bike Weight:
85-81.5lbs (with Battery)
Battery Weight:
52V8Ah Battery: 6lbs, 52V20Ah Battery: 11lbs
Payload Capacity:
330lbs
WHAT ONLINE REVIEWERS SAY
BULLET GTX
A
The RAEV Bike is very high quality! I am extremely impressed by the quality of this bike, from the paint quality to the over all components and finish. I have driven and owned other brands but they bike is far superior!
B
Bullet GTX
D

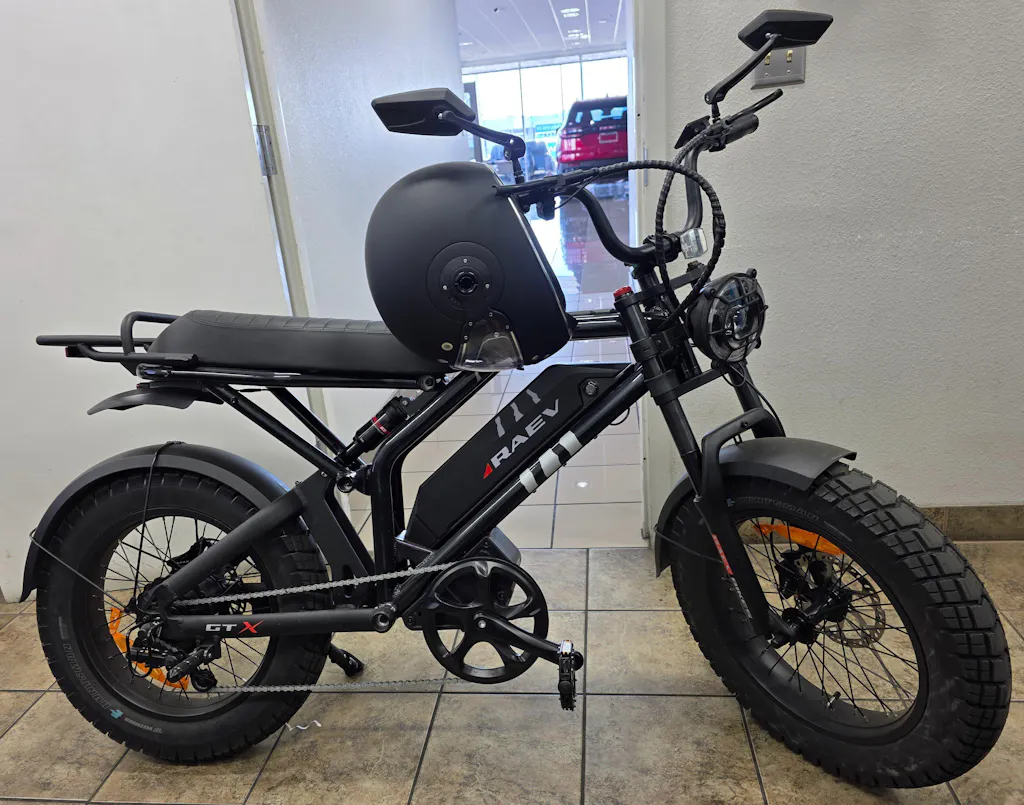

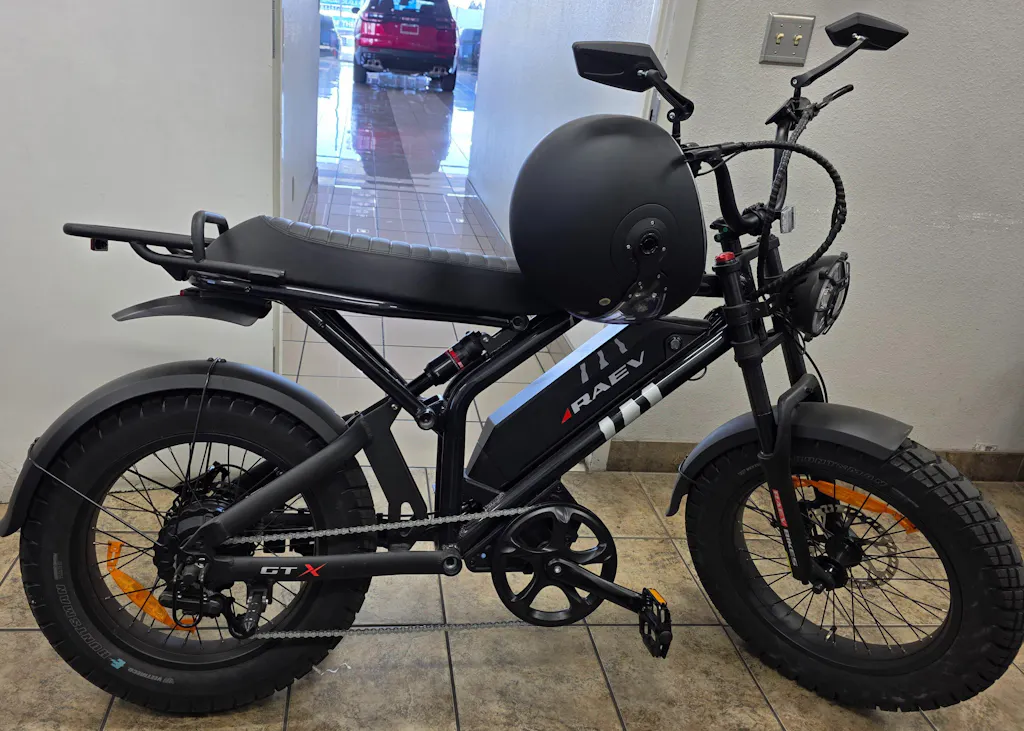

My brother got one about a year ago. I liked his so I ordered a V2 of the GTX in black. I was impressed that RAEV has made some upgrades since my brother got his GTX. The bike is packed super well, so much attention to detail was given to the design. I can't figure out why anyone would buy a more expensive brand. This bike looks awesome, everything is tight. Even the plastic bags that hold the parts are high quality. I used a YouTube video to learn how to unlock high speeds. Super easy and I love that I only had to unlock it once. And it remembers. Some of the highlights for me are that it can support two people comfortably with that long seat, sits high enough to be very comfortable for taller riders (I am 6'2") and I can actually pedal it standing or sitting in mode 0. Not that I bought it for pedaling. But nice to know you can. Headlight is great. high quality bolts, tires, electronics, etc. Mode 2 gets tons of battery range and lets me go about 25+MPH with the speed setting unlocked to 50. Mode 3 is faster but not needed for my day to day. Everything about this bike feels premium from the kick stand to the brakes to the packaging.
C
Fat tires, full suspension, hydraulic brakes and comfortable for 2 riders. My son and I are enjoying our GTX. Going off-roading soon.
J
The bike is great in so many ways, easy assembly, heavy duty and you can add as many customization as you can find.
It’s not a beginner bike, it helps to take the time to learn about it and its components so that you can adjust and perform minor servicing.
Love the bike has taken me all around the greater Vancouver area road and trail!
"You can see I'm doing 23mph, and leaning into a 90degrees turn, handles it great, just like a little motorcycle"
